Product Description

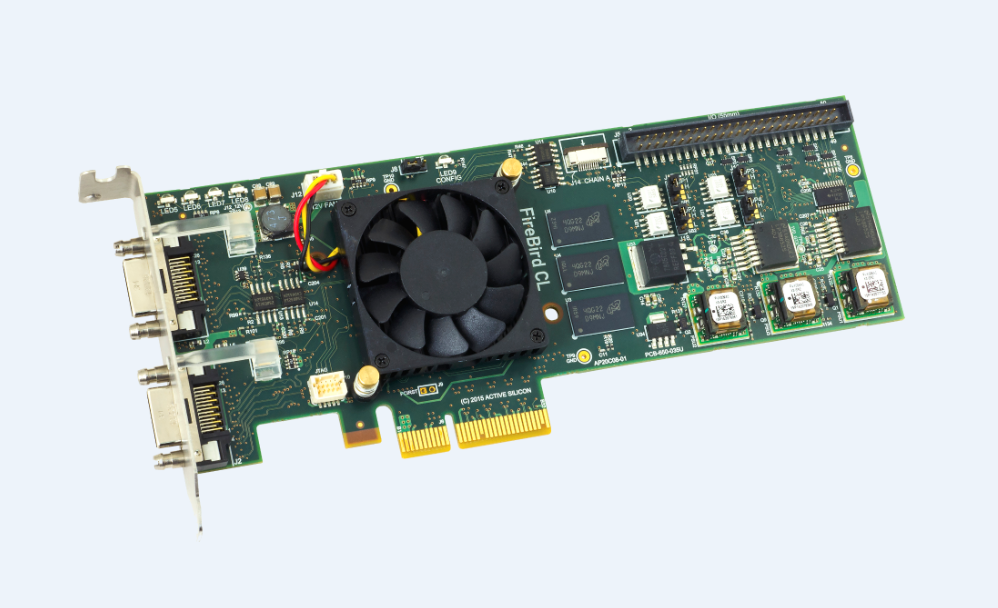

FireBird Camera Link 80-bit Low Profile is a member of Active Silicon’s state-of-the-art FireBird frame grabber family. The low profile design allows the FireBird Low Profile board to be used in small embedded PC enclosures and 2U rack mount cases where the full height PC cards are not suitable. FireBird is designed for ultimate performance using Active Silicon’s proprietary DMA Engine technology, "ActiveDMA". This technical innovation applies RISC based processor techniques and guarantees zero CPU intervention, high speed and low latency image data transfers.




FireBird supports the latest version 2.0 Camera Link specification, including both 80-bit modes: 8-bit 10-tap and 10-bit 8-tap modes – often referred to as Camera Link “Deca”, at clock rates up to 85 MHz. The 4-lane Gen2 interface used on the FireBird is fast enough to cope with the full data rate that the Camera Link 80-bit interface can support. The FireBird also supports capture from two simultaneous Base Camera Link cameras as well as single Base, Medium and Full configurations.



FireBird is supported by by Active Silicon’s software development kit, ActiveSDK. This is available as a separate item, and allows rapid system development and integration. It provides comprehensive example applications and optimized runtime libraries, and supports a variety of operating systems via a common API, including Windows, Linux and QNX. Drivers for third party applications are also available such as Cognex VisionPro, HALCON, Common Vision Blox, StreamPix, LabVIEW etc. As well as functions that control the hardware, the libraries include general purpose functions for the manipulation and display of images.



FireBird also supports GenICam for Camera Link cameras which support CLProtocol, including those using GenCP. A GenTL Producer is provided as part of the FireBird driver installation which allows the frame grabber to be used with GenICam GenTL compliant applications.


Features

>> Low Profile (half-height) PC form-factor.

>> Supports Base, dual Base, Medium, Full and 80-bit (Deca) modes, with PoCL.

>> 4-lane Gen2 PCI Express interface.

>> Supports the latest v2.0 Camera Link interface.

>> Half-length PCI Express form-factor.

>> Low profile or full height bracket options available.

>> Camera Link mini connectors (HDR/SDR).

>> Supports PoCL (Power over Camera Link).

>> Comprehensive I/O.

>> ActiveDMA engine – acquisition with zero CPU usage.

>>Supported by the proven ActiveSDK.

>> Supports GenICam for CLProtocol & GenCP cameras.

>> Includes GenICam GenTL Producer.
